The Worcester Bosch unit on its raised frame on the flat roof, with the isolator beside it.

A Worcester Bosch heat pump
on a Kingston flat roof

A 7kW Worcester Bosch monobloc on a raised frame on a flat roof, with a 210-litre heat pump cylinder and the grant application handled for the owner.

Price my heat pump
  • Our own job, photographed on the day
  • Free survey and a fixed written price
  • MCS certified, NICEIC approved electrics

Accredited, and fitting the brands you know

NICEIC approved contractorGas Safe RegisterMCS certifiedRECC, Renewable Energy Consumer CodeTrustMark, Government Endorsed QualityVaillantClivetSamsungDaikinMitsubishi ElectricBosch

We installed a Worcester Bosch CS7400iAW 7kW monobloc heat pump in Kingston upon Thames KT1, with a Green Storage 210-litre heat pump cylinder. The unit stands on a raised frame on a flat roof, and we managed the Boiler Upgrade Scheme grant for the owner.

The size came from a room-by-room heat loss assessment, and MCS certification was issued on completion.

How the job was done

Step by step, in the photographs taken on site.

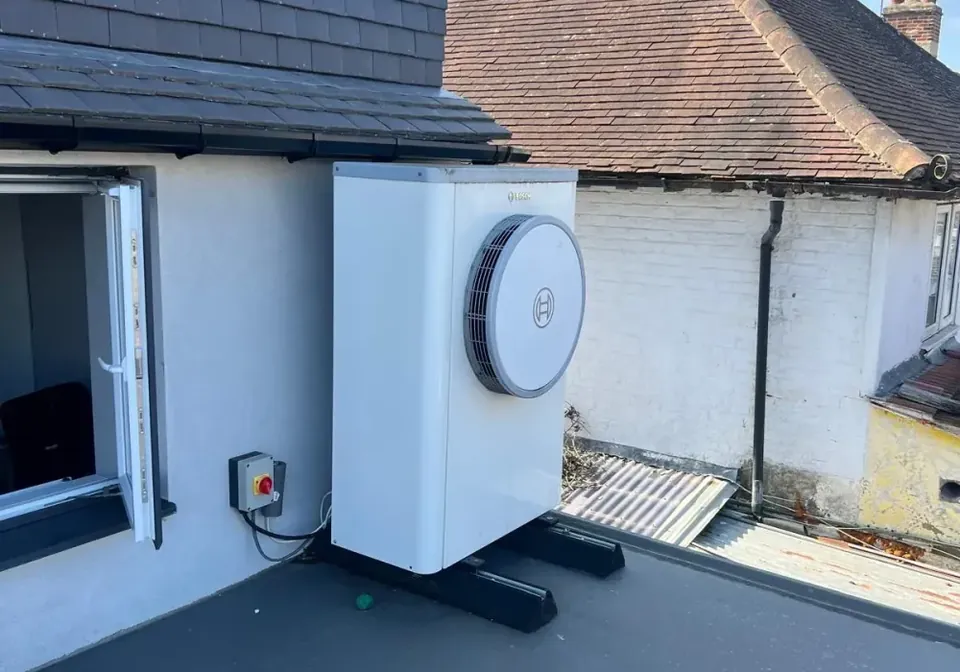

  1. The Worcester Bosch unit on its raised frame on the flat roof, with the isolator beside it.
    1

    A raised frame on the roof

    On a flat roof the unit sits on a raised frame, so the roof covering carries no point load and rainwater still runs freely underneath it.

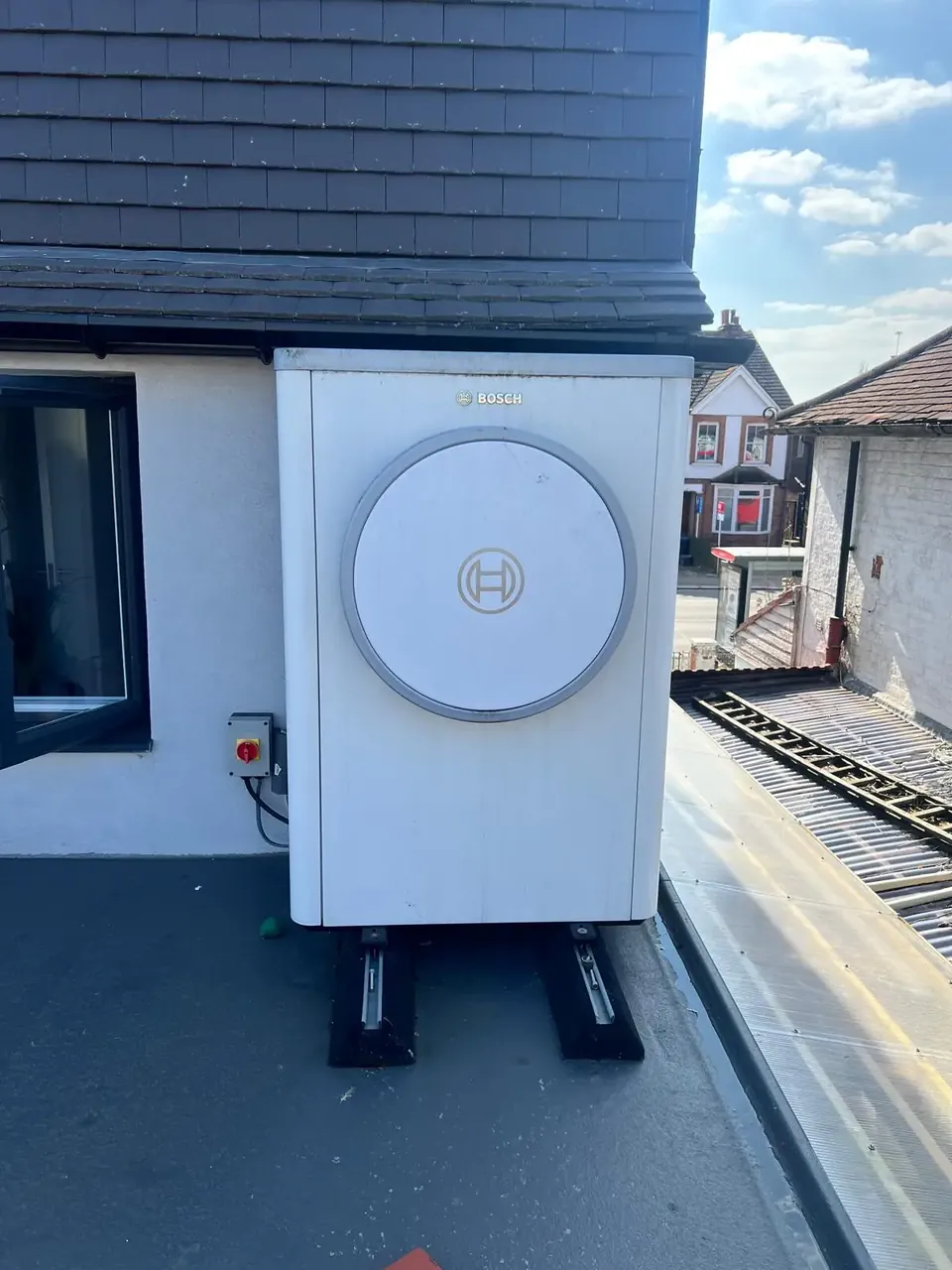

  2. The same unit from the front.
    2

    Sized room by room

    Each room's heat loss was calculated before the 7kW unit was chosen, which is what makes the difference between a system that copes in January and one that does not.

Thinking about a heat pump?

What this job involved, applied to your own house.

Air source heat pumps

Whole-house heating with the £7,500 grant

Air source heat pumps

What a heat pump costs

Ten real quotations, before and after the grant

What a heat pump costs

Heat pump or air conditioning?

Which one a house actually needs

Heat pump or air conditioning?

Air-to-air heat pumps

Heats and cools, room by room

Air-to-air heat pumps

Kingston upon Thames KT1: questions about this job

Do you only fit one brand of heat pump?

No. We fit Samsung, Vaillant, Mitsubishi, Daikin and, as here, Worcester Bosch, and choose the unit for the house.

Do you cover Kingston and Surrey?

Yes, Kingston, Surbiton, New Malden and the KT postcodes. Our work in Kingston.
