Vaillant Heat Pump, Kingston upon Thames KT2
A Vaillant air source heat pump for a house in Kingston KT2, in the side passage where it is out of the way, with the buffer tank, hot water cylinder and underfloor heating manifold together in one cupboard.
- HeatingUnderfloor heating from a manifold
- InstalledOctober 2026
- Postcode areaKT2
Vaillant air source heat pump installation in Kingston KT2

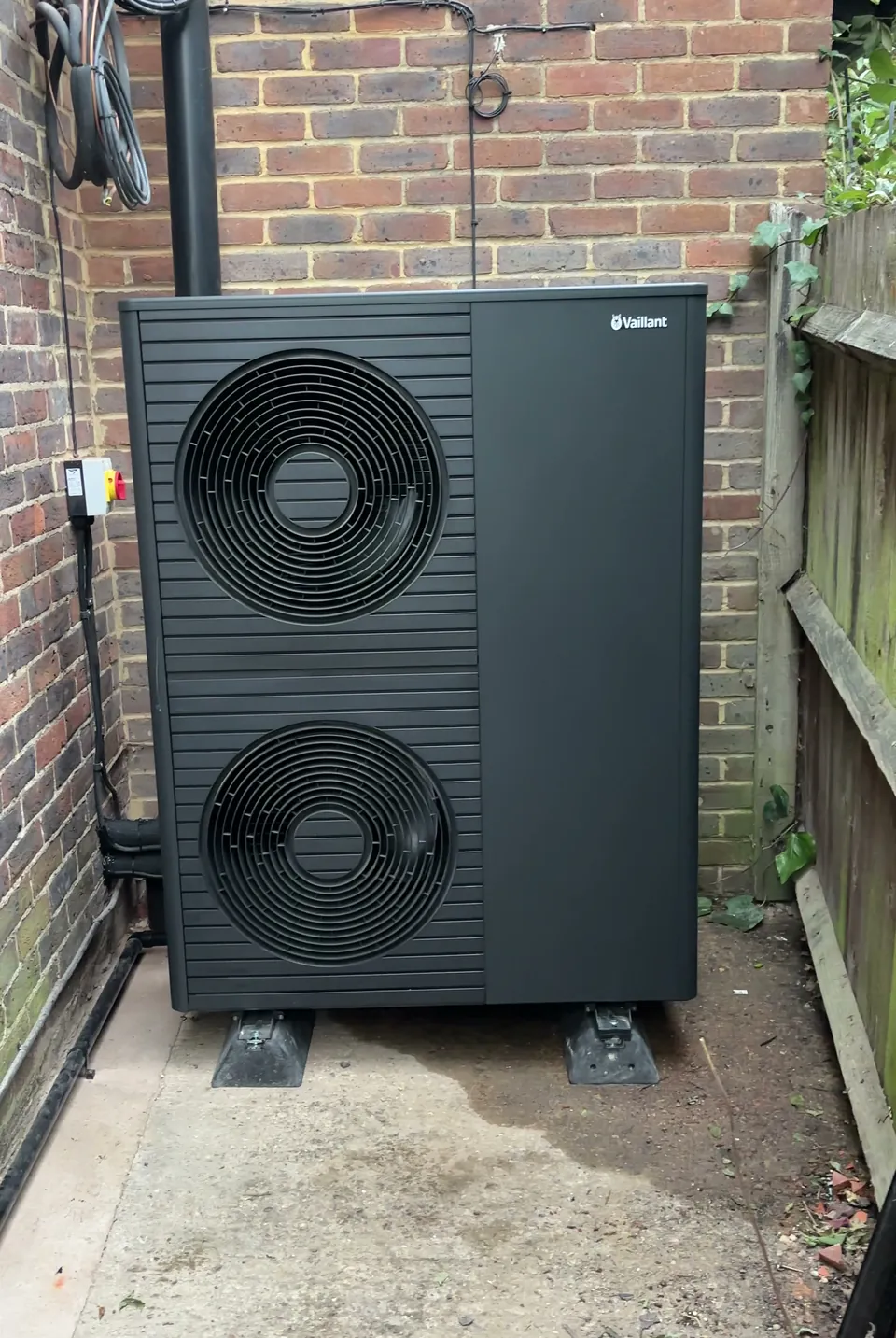

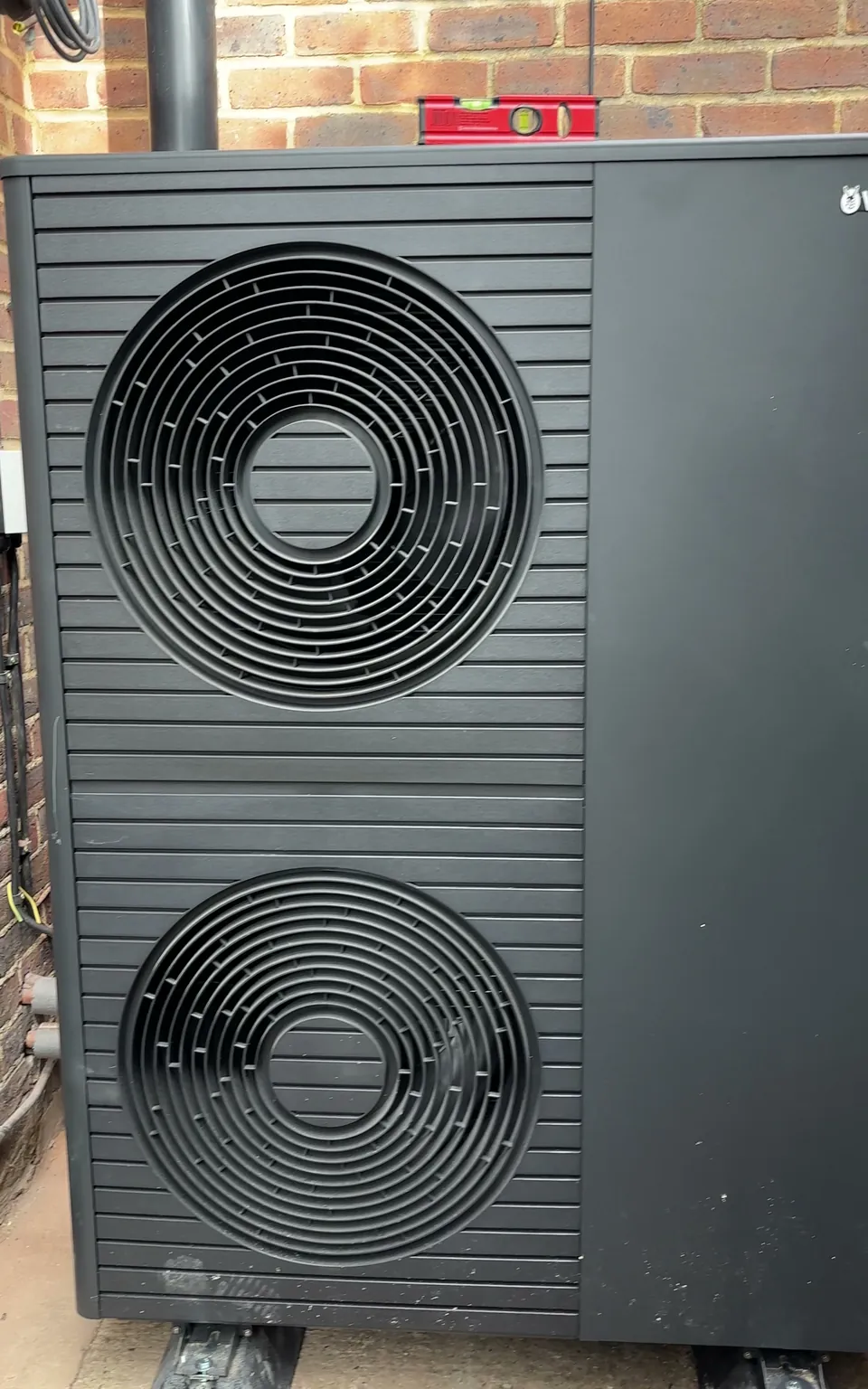

We installed a Vaillant air source heat pump at a house in Kingston upon Thames KT2. The outdoor unit is a large two-fan monobloc, and it stands in the narrow side passage between the house and the fence, where it is out of sight from the garden and the street.

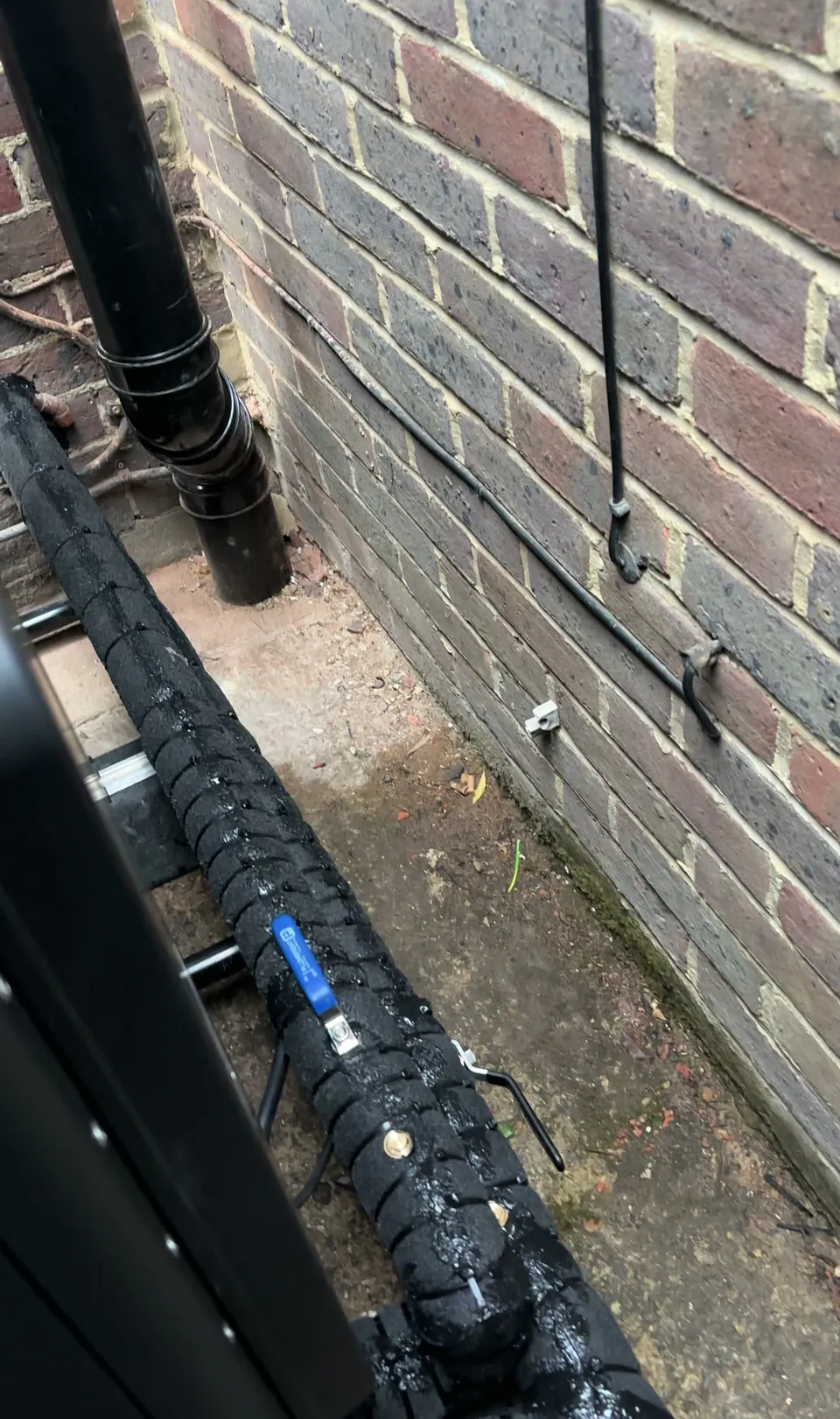

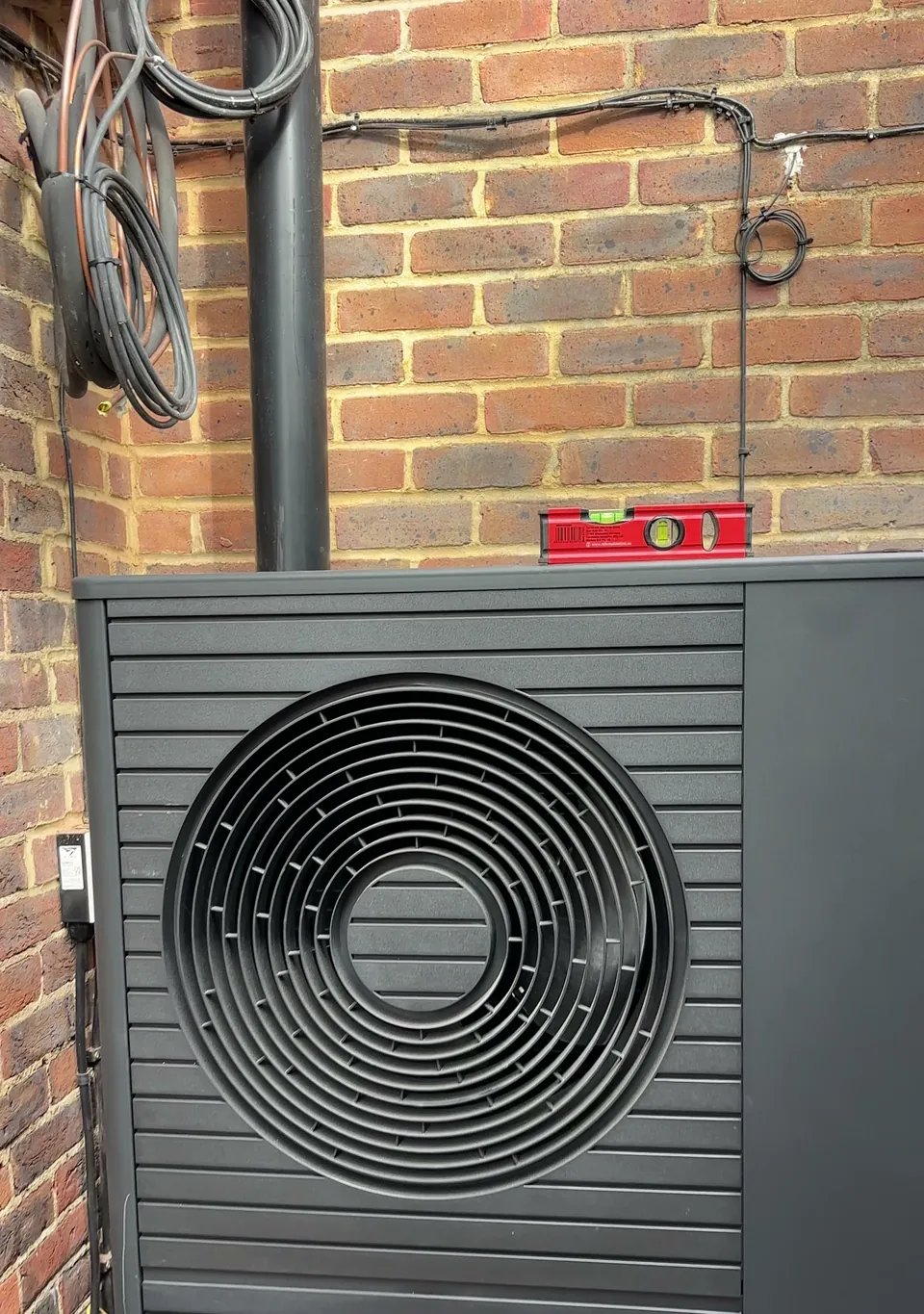

The unit stands on feet on the paving and was levelled with a spirit level on its lid before it was connected. The flow and return run along the foot of the wall in thick black insulation, with an isolating valve on the run and the cable clipped to the brickwork above it.

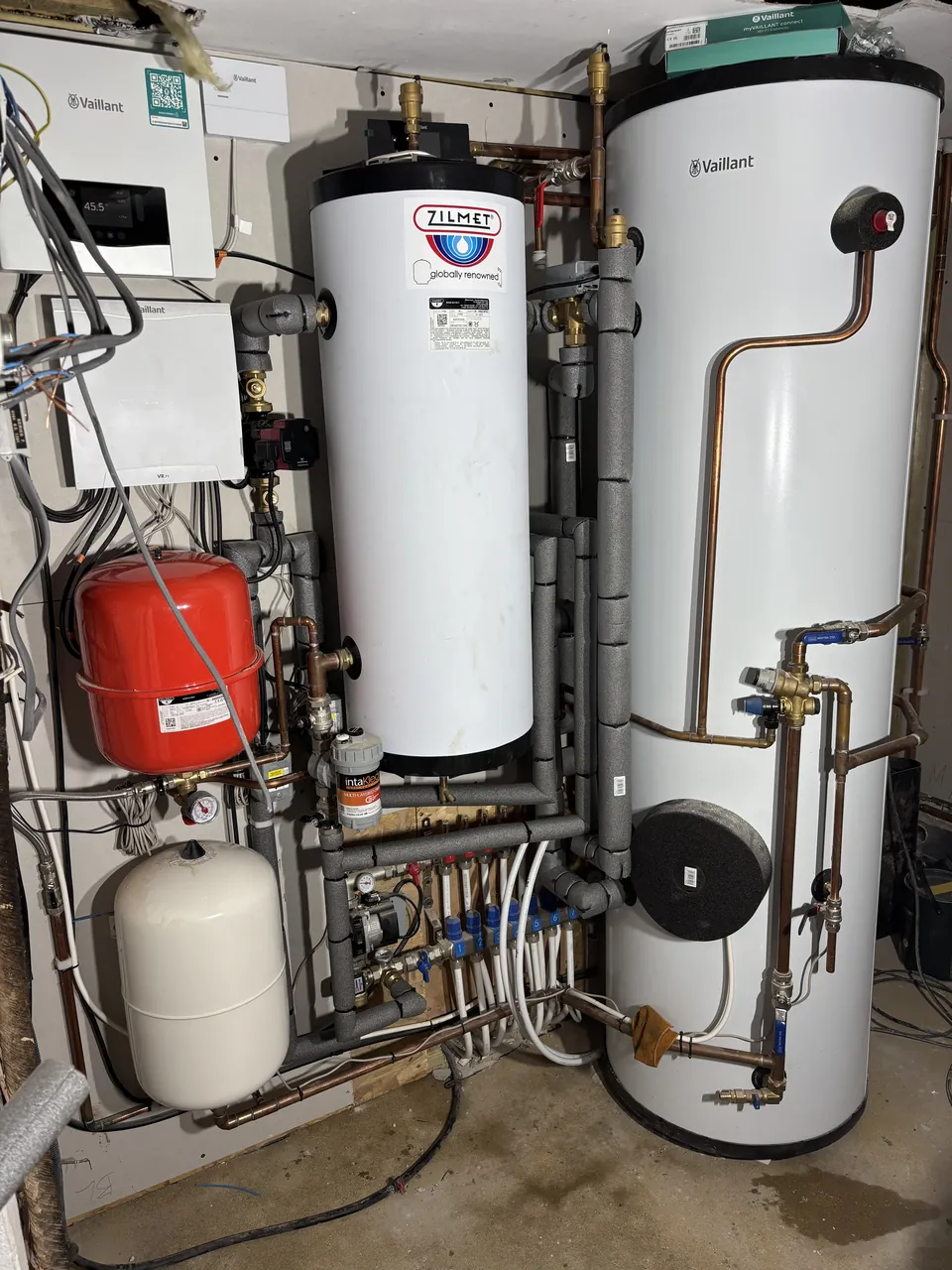

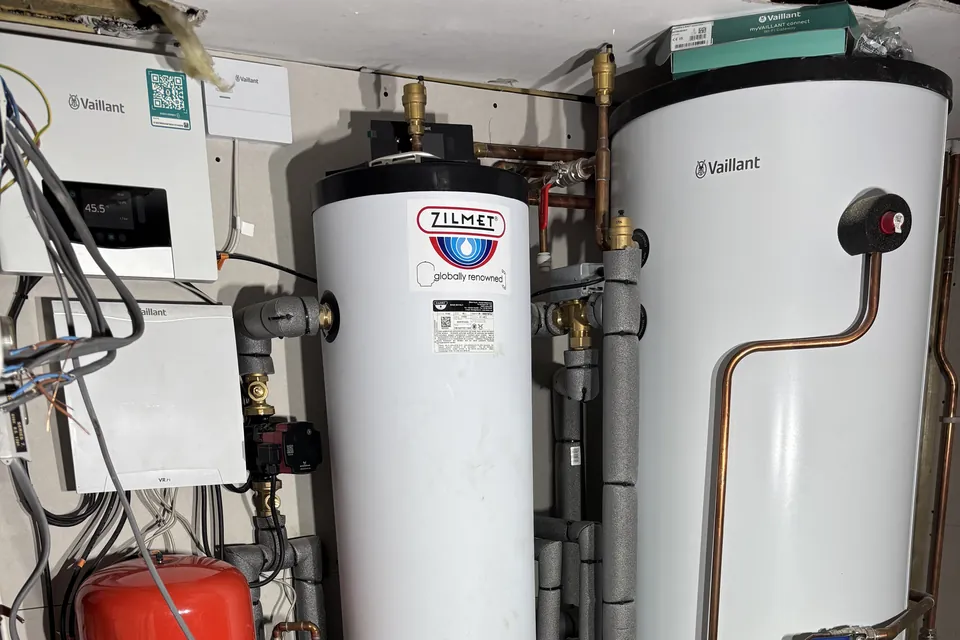

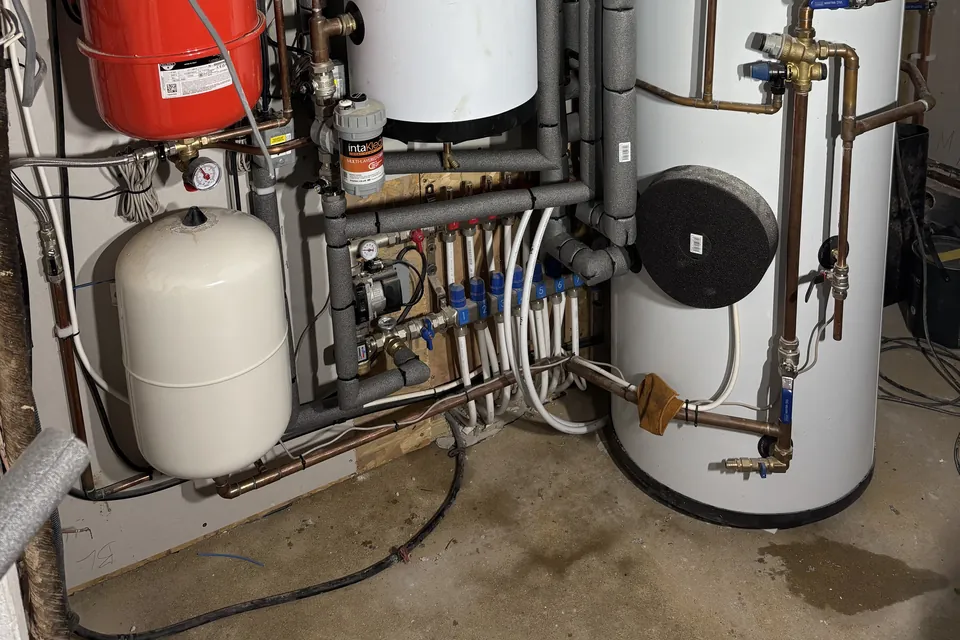

Inside, the system has a Vaillant controller and wiring centre, a Zilmet buffer tank, a Vaillant hot water cylinder, a magnetic filter, expansion vessels for the heating and the hot water, and an underfloor heating manifold, all piped in insulated pipework in one cupboard.
The job in short
- Where: Kingston upon Thames KT2
- Heat pump: Vaillant air source, two-fan monobloc
- Outdoor unit: In the side passage, on feet on the paving
- Pipework: Flow and return lagged along the wall
- Inside: Buffer tank, hot water cylinder, filter, vessels
- Heating: Underfloor heating from a manifold
- Controls: Vaillant controller and wiring centre
- Installed: October 2026
Photos from the job
Thinking about a heat pump in Kingston upon Thames?
We measure every room, calculate the heat loss, check the radiators and the space for a cylinder, and send a written price with the grant already taken off. No cost and no obligation.
