A heat pump and a cylinder
for a low basement in Wood Green
The plant room was in the basement and the ceiling was too low for an upright cylinder. So the cylinder lies on its side.
- Our own job, photographed on the day
- Free survey and a fixed written price
- MCS certified, NICEIC approved electrics
Accredited, and fitting the brands you know
We installed a Samsung Gen 7 5kW heat pump in Wood Green N22 with a 200-litre horizontal unvented cylinder, chosen because the basement plant room was too low for an upright one. The system meets MCS requirements without losing any hot water capacity.
It is the kind of decision a site survey makes and a standard specification does not.
How the job was done
Step by step, in the photographs taken on site.
-
1
A cylinder on its side
An upright 200-litre cylinder would not fit under the basement ceiling. A horizontal unvented cylinder holds the same and fits the space, so the plant room could stay where it was.
-
2

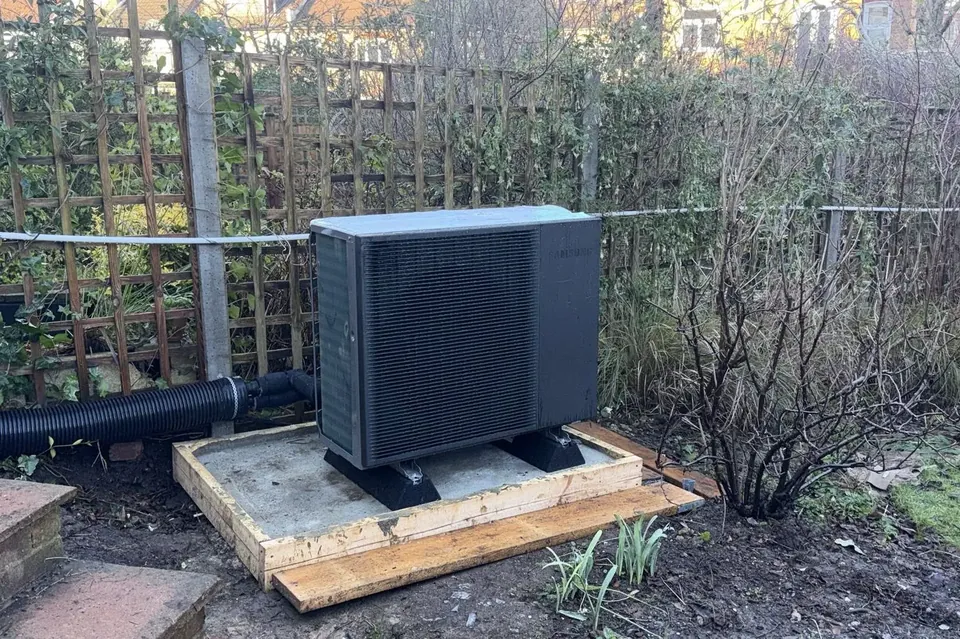

A levelled base outside
The outdoor unit stands at the rear of the house on a levelled base built up out of the border, not on soil, so its feet stay out of standing water and it does not settle out of level over a winter.
Every photograph from the job
3 photographs, no faces, nothing staged.
Thinking about a heat pump?
What this job involved, applied to your own house.
Air source heat pumps
Whole-house heating with the £7,500 grant
Air source heat pumpsWhat a heat pump costs
Ten real quotations, before and after the grant
What a heat pump costsHeat pump or air conditioning?
Which one a house actually needs
Heat pump or air conditioning?Air-to-air heat pumps
Heats and cools, room by room
Air-to-air heat pumpsWood Green N22: questions about this job
What if I have no room for a hot water cylinder?
There are options: a horizontal cylinder for low spaces, a slimline one, or a compact heat battery. The survey finds the space first and chooses the cylinder to fit it.
Is 5kW enough for a house?
For a smaller or well-insulated house, often yes. The heat loss survey sets the size, not the number of bedrooms.
