A 16kW heat pump and a horizontal cylinder
in Walton-on-Thames
A Samsung 16kW high temperature unit on the patio, and a 300-litre cylinder laid on its side in the loft, where there was floor space but not the height.
- Our own job, photographed on the day
- Free survey and a fixed written price
- MCS certified, NICEIC approved electrics
Accredited, and fitting the brands you know
We installed a Samsung 16kW high temperature heat pump in Walton-on-Thames KT12 with a 300-litre horizontal Tempest unvented cylinder in the loft, chosen because the loft was too low for an upright one. A 50-litre buffer, a Hive thermostat and anti-freeze valves complete the system.
The size came from a detailed heat loss assessment, and the unit carries Samsung's 7-year warranty.
How the job was done
Step by step, in the photographs taken on site.
-
1
On the patio, on its own feet

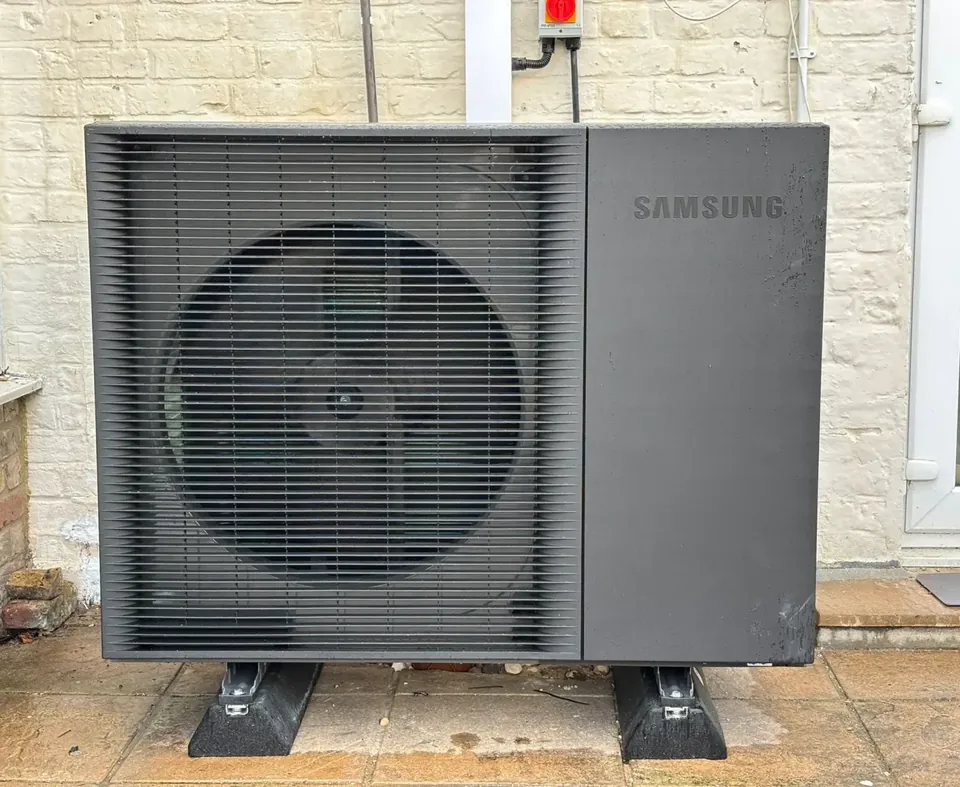

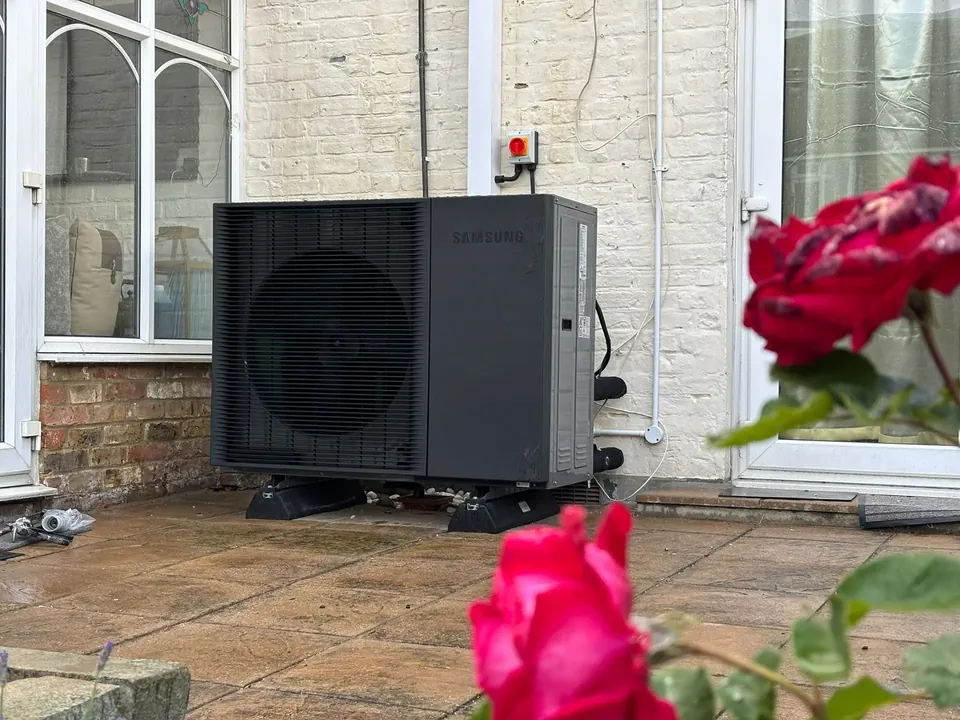

The outdoor unit stands on anti-vibration feet on the rear patio, with the isolator on the wall beside it and a short run into the house.
-
2A cylinder lying down in the loft

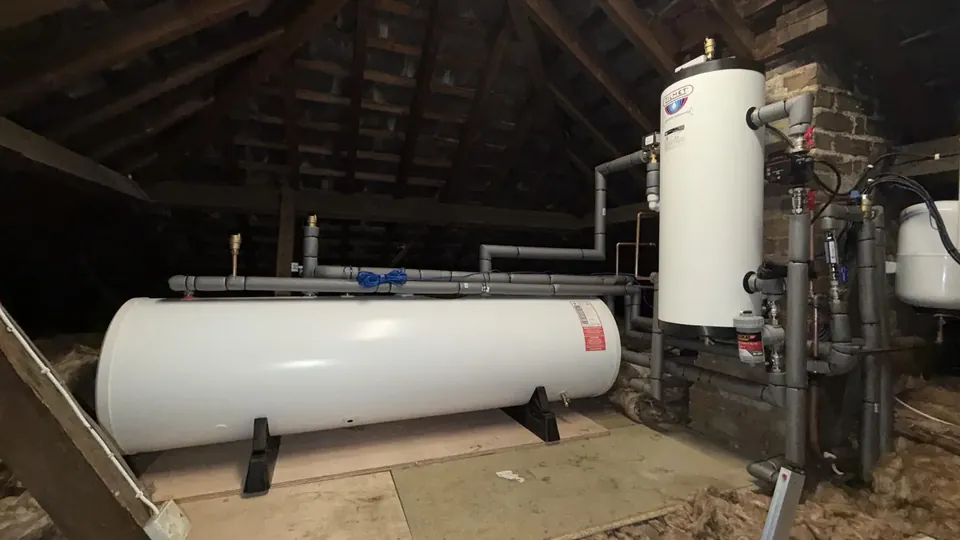

The loft had the floor space for a 300-litre cylinder but not the height, so it is a horizontal one. It gives a large family's worth of hot water, with the buffer standing beside it.
Every photograph from the job
3 photographs, no faces, nothing staged.
