Heat Pump in a Full Renovation, Epsom KT19
A house being renovated and extended to current standards, with the gas boiler replaced by an 8kW Samsung Gen 7 serving underfloor heating downstairs and radiators upstairs.
- Heat pumpSamsung Gen 7 8kW
- Hot waterSamsung 250-litre cylinder
- Postcode areaKT19
A heat pump planned into a full renovation in Epsom
We replaced the gas boiler in a renovated and extended Epsom KT19 home with an 8kW Samsung Gen 7 heat pump and a 250-litre Samsung cylinder. Underfloor heating downstairs and radiators upstairs run as separate zones with a buffer tank and Hive wireless thermostats. With new insulation and triple glazing throughout, the house needs far less heat than before, which is why 8kW is enough. The £7,500 grant was applied.

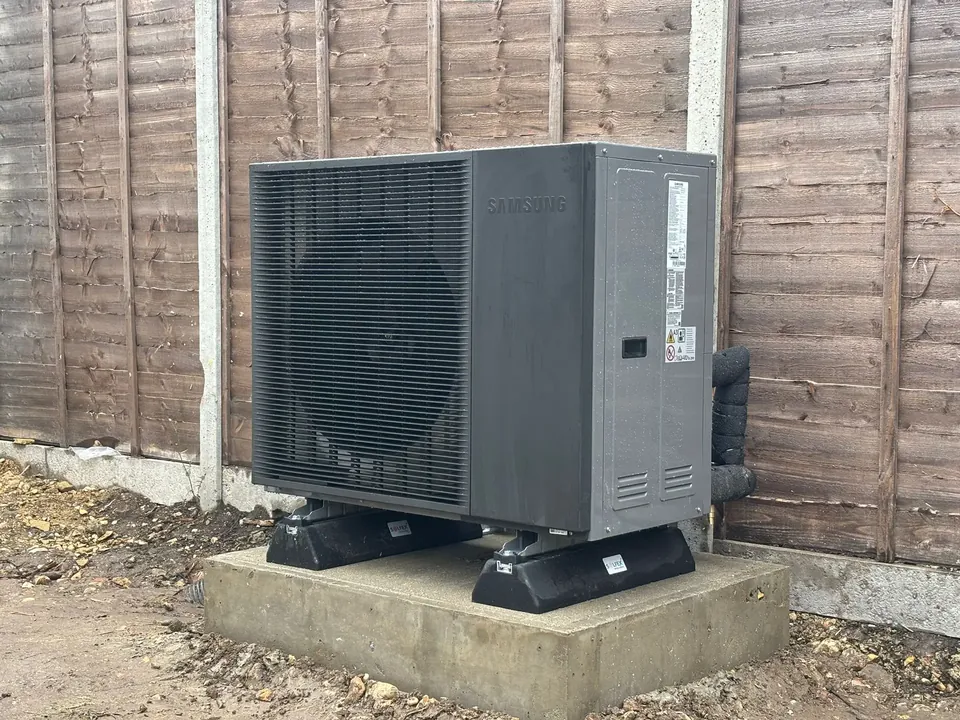

Underfloor heating and radiators want different water temperatures, so they run as separate zones with their own thermostats, and a buffer tank lets each draw what it needs. The outdoor unit was positioned to meet Samsung's clearance requirements around the layout of the new extension, set into a planted border on a hard base with a short pipe run.
On a renovation, the heat pump is one trade among several. The heat loss survey, pipe routes and commissioning were planned around the builders' programme.
The job in short
- Where: Epsom KT19, Surrey
- Project: Full renovation and rear extension, new insulation, triple glazing
- Heat pump: Samsung Gen 7 8kW
- Hot water: Samsung 250-litre cylinder
- Heating: Underfloor downstairs, radiators upstairs, separate zones
- Controls: Hive wireless thermostats, buffer tank
- Grant: £7,500 Boiler Upgrade Scheme
