A 16kW heat pump designed
as a complete system in Leytonstone
Not just an outdoor unit: a Samsung 16kW heat pump, a Sunamp heat store, a buffer, a dedicated fuse board and a concrete base, designed as one system.
- Our own job, photographed on the day
- Free survey and a fixed written price
- MCS certified, NICEIC approved electrics
Accredited, and fitting the brands you know
We installed a Samsung 16kW air source heat pump in Leytonstone E11 as a complete heating and hot water system: a Sunamp 300X-Plus heat store, a Hive thermostat, a 25-litre buffer with secondary circulation pump, 35mm dual-insulated copper pipework, a dedicated fuse board and a concrete base for the unit.
The Boiler Upgrade Scheme application and voucher were handled for the owner, and MCS, Building Control and DNO paperwork were issued on completion.
How the job was done
Step by step, in the photographs taken on site.
-
1

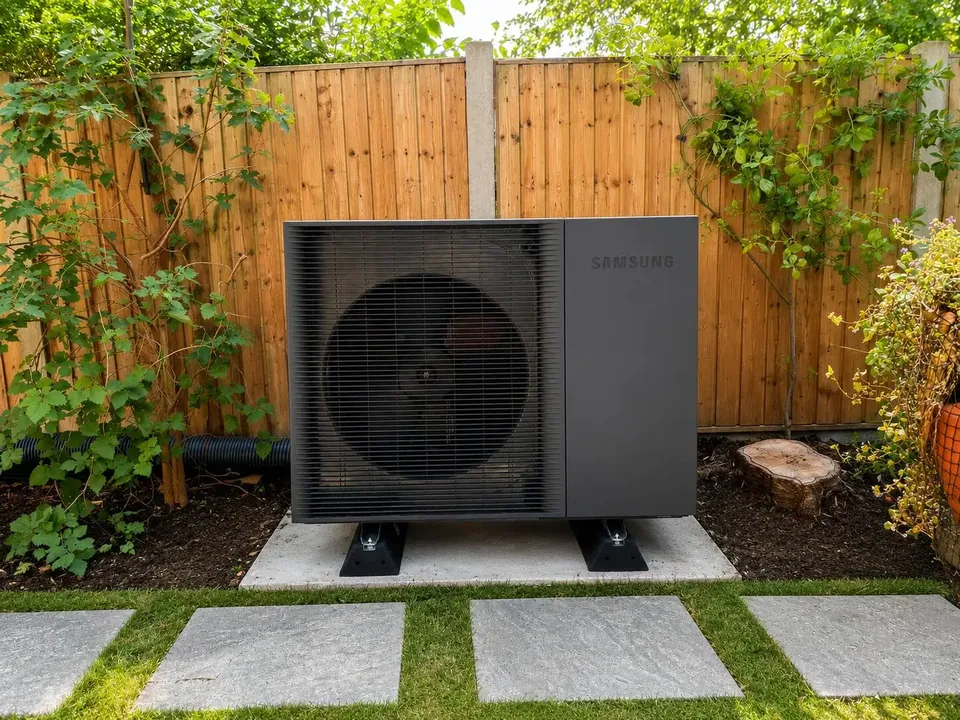

On its own slab, off the fence
The unit stands on a concrete slab set clear of the fence line, with the condensate taken away below ground instead of running across the paving, where it would freeze on a winter morning.
-
2
Big pipe for a big unit
A 16kW unit moves a lot of water, so the flow and return are 35mm copper, dual-insulated, to keep the flow rate right and the losses low.
-
3
Its own fuse board
The heat pump and hot water system have a dedicated fuse board, so they are protected and isolated separately from the rest of the house.
Thinking about a heat pump?
What this job involved, applied to your own house.
Air source heat pumps
Whole-house heating with the £7,500 grant
Air source heat pumpsWhat a heat pump costs
Ten real quotations, before and after the grant
What a heat pump costsHeat pump or air conditioning?
Which one a house actually needs
Heat pump or air conditioning?Air-to-air heat pumps
Heats and cools, room by room
Air-to-air heat pumpsLeytonstone E11: questions about this job
Why does pipe size matter on a heat pump?
A heat pump needs a higher water flow than a boiler. Pipes that are too small restrict it, and the unit runs less efficiently or struggles. Larger units need larger pipe.
Do you handle the grant paperwork?
Yes. We make the Boiler Upgrade Scheme application and redeem the voucher, and the grant comes off the price.
