The house from the garden, with the solar panels across the rear roof.

A Mitsubishi Ecodan, solar and a battery
in Winchmore Hill

An 11.2kW Mitsubishi Ecodan designed room by room to run at 55°C, with ten solar panels on the rear pitch and a 9.5kWh battery.

Price my heat pump
  • Our own job, photographed on the day
  • Free survey and a fixed written price
  • MCS certified, NICEIC approved electrics

Accredited, and fitting the brands you know

NICEIC approved contractorGas Safe RegisterMCS certifiedRECC, Renewable Energy Consumer CodeTrustMark, Government Endorsed QualityVaillantClivetSamsungDaikinMitsubishi ElectricBosch

We installed a Mitsubishi Ecodan 11.2kW heat pump with a 250-litre cylinder, a 4.45kW solar system of ten panels and a 9.5kWh battery in Winchmore Hill N21. Every room was checked against its existing radiators so the system could run at 55°C, which gives it a designed seasonal efficiency (SCOP) of 3.99.

A SCOP of 3.99 means almost 4 units of heat for every unit of electricity over a year. The £7,500 grant was applied, and at 32dB the unit sat within permitted development, so no planning application was needed.

How the job was done

Step by step, in the photographs taken on site.

  1. 1

    Every room checked

    The heat loss survey went room by room, comparing what each room loses on a cold day with what its existing radiator can give at 55°C. The design confirmed the radiators could stay, which kept the job simpler and the house familiar.

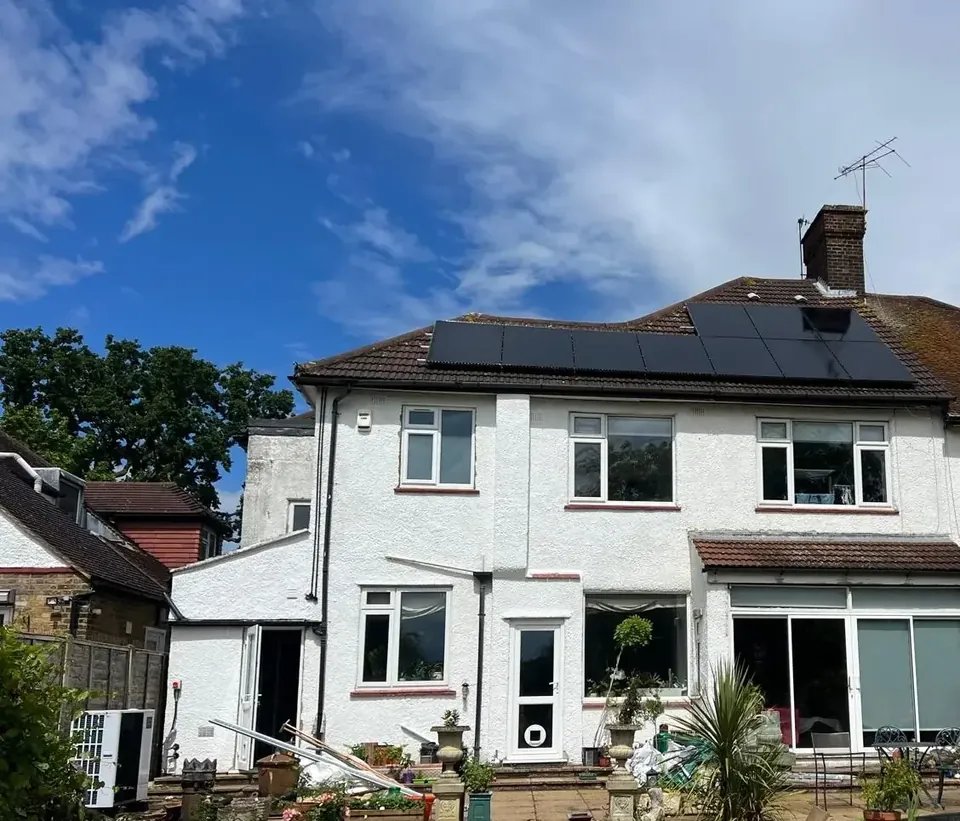

  2. The house from the garden, with the solar panels across the rear roof.
    2

    Solar on the rear pitch

    Ten panels across the rear roof slope give 4.45kW of generation. Through the middle of the day the heat pump can run on the house's own electricity, and the battery keeps the surplus for the evening.

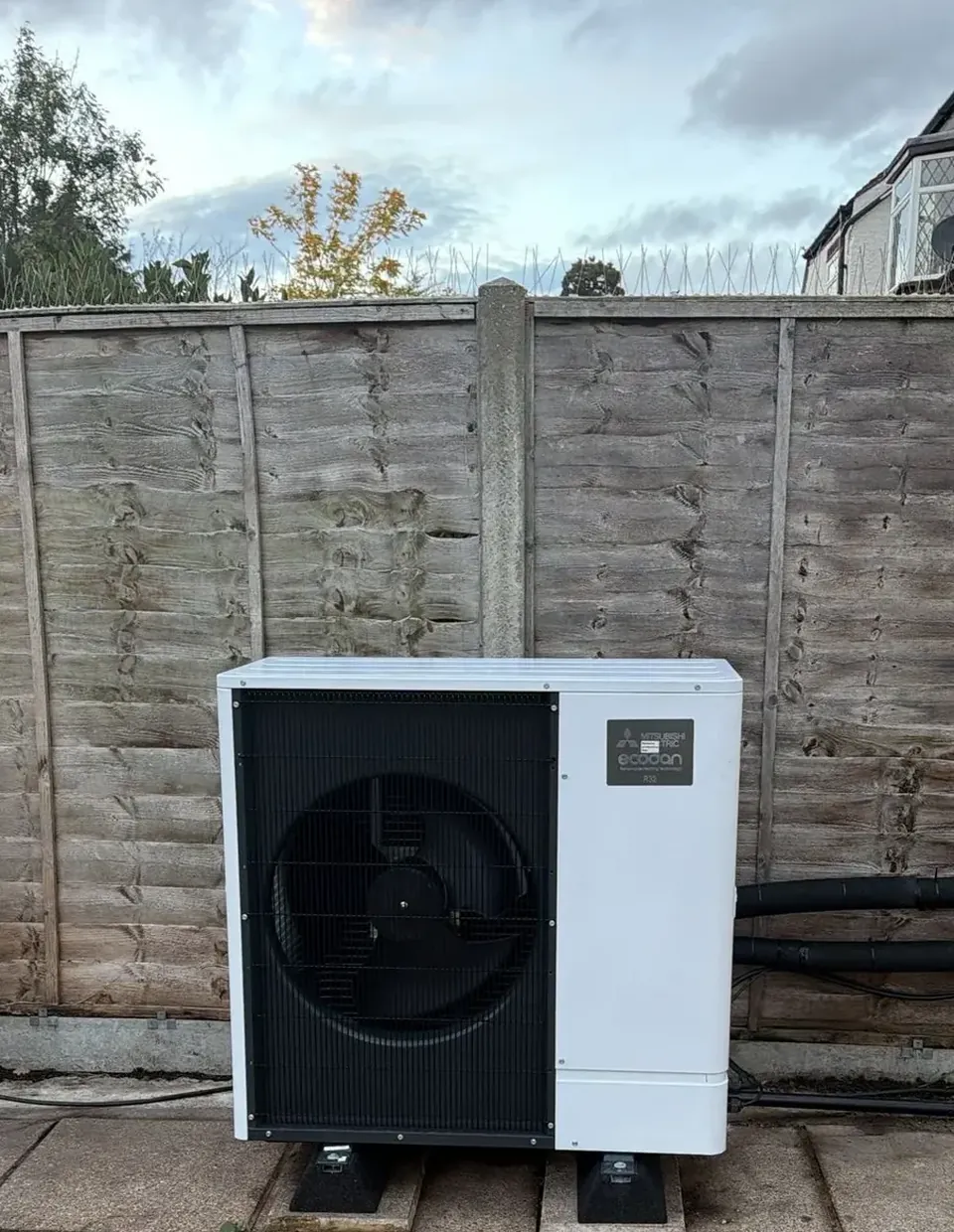

  3. The Ecodan on its feet, standing off the boundary fence.
    3

    Sited off the fence

    The Ecodan stands far enough off the boundary fence that the fan does not blow straight back off it, which is what makes a badly sited unit sound louder than it is.

Every photograph from the job

4 photographs, no faces, nothing staged.

The house from the garden, with the solar panels across the rear roof.
The house from the garden, with the solar panels across the rear roof.
The Ecodan on its feet, standing off the boundary fence.
The Ecodan on its feet, standing off the boundary fence.

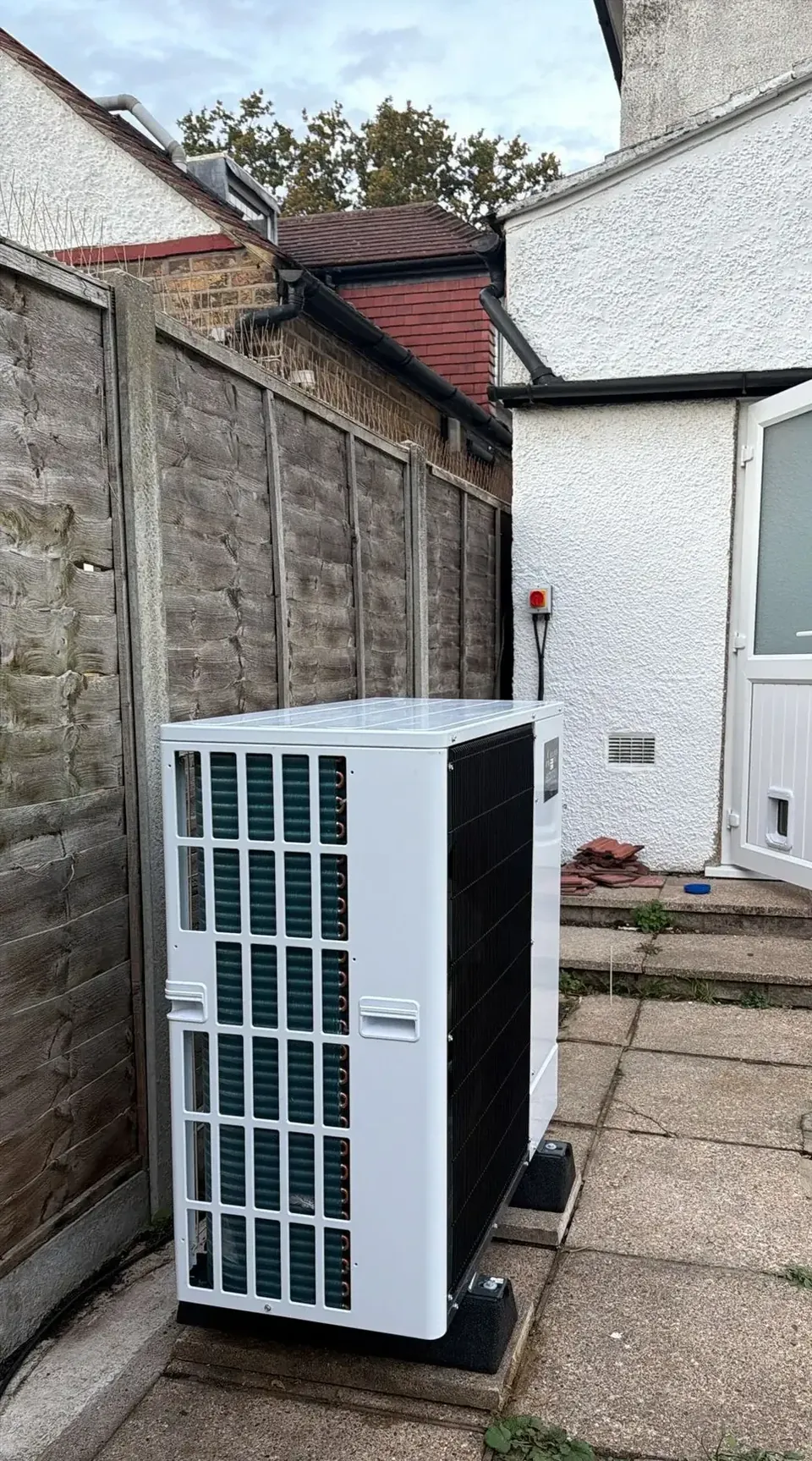

The unit from the side, with space kept round it.
The unit from the side, with space kept round it.

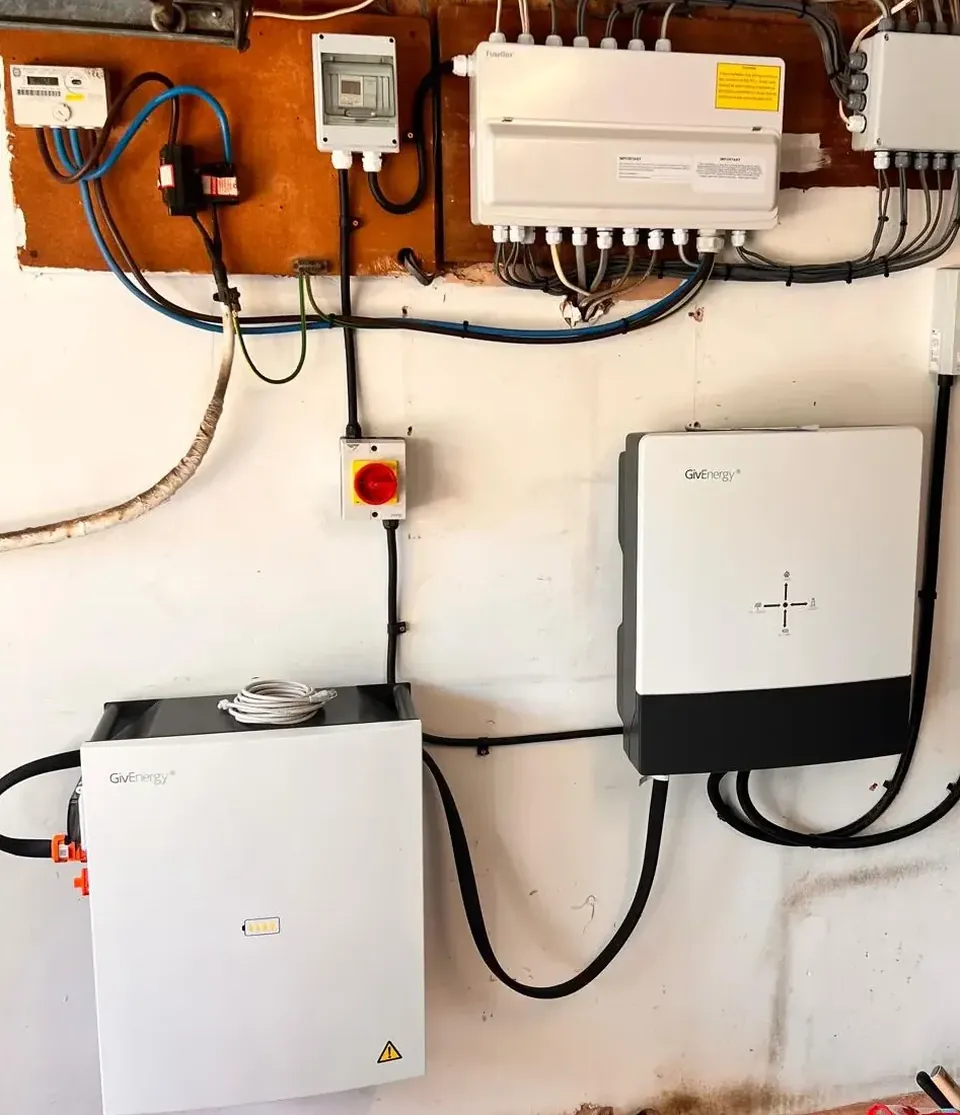

The inverter and battery on the wall indoors.
The inverter and battery on the wall indoors.

Thinking about a heat pump?

What this job involved, applied to your own house.

Air source heat pumps

Whole-house heating with the £7,500 grant

Air source heat pumps

What a heat pump costs

Ten real quotations, before and after the grant

What a heat pump costs

Heat pump or air conditioning?

Which one a house actually needs

Heat pump or air conditioning?

Air-to-air heat pumps

Heats and cools, room by room

Air-to-air heat pumps

Winchmore Hill N21: questions about this job

What is SCOP?

The seasonal coefficient of performance: how many units of heat a heat pump delivers for each unit of electricity, averaged over a year. 3.99 means almost four. It depends on the design flow temperature, which is why the room-by-room survey matters.

Do I need planning permission for a heat pump?

Usually not, if the unit meets the permitted development conditions, including the noise limit. This one measured 32dB, well within them.
