Three rooms of air conditioning
from one outdoor unit
A Daikin multi-split in New Southgate N11: three Daikin Stylish wall units, each room controlled on its own, all from one outdoor condenser.
- Our own job, photographed on the day
- Free survey and a fixed written price
- MCS certified, NICEIC approved electrics
Accredited, and fitting the brands you know
We installed a Daikin multi-split air conditioning system in a house in New Southgate N11: one Daikin 3MXM52A outdoor unit serving three Daikin Stylish indoor units of 1.5kW, 2.5kW and 3.5kW. Each room has its own temperature control, and the outside of the house carries one unit instead of three.
The system cools in summer and heats in winter. The work covered the refrigerant pipework, condensate drainage, electrics, pressure and vacuum testing, charging and commissioning, and a handover on how to use and look after it.
How the job was done
Step by step, in the photographs taken on site.
-
1
One outdoor unit, three rooms
Each indoor unit is sized to its own room, from 1.5kW to 3.5kW, and all three run from one 5kW outdoor condenser. Three rooms, one box outside.
-
2

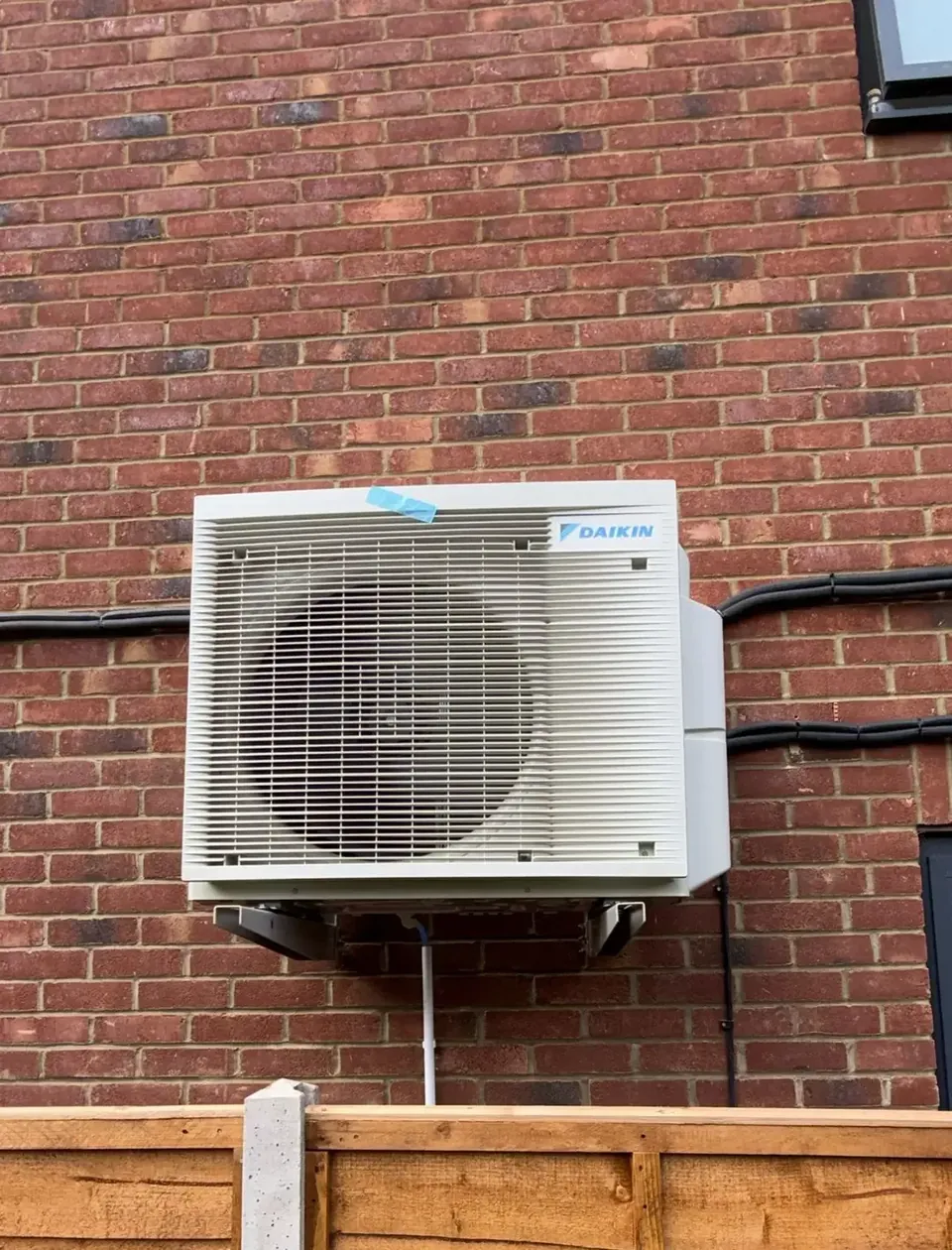

On brackets, not the ground
The side return was narrow, so the condenser is wall-mounted on brackets rather than stood on the ground, and the refrigerant lines drop to it in a single trunked run.
-
3
Tested before it was charged
Every joint was pressure tested and the system held under vacuum before the refrigerant went in. That is the step that decides whether a system leaks in its third year.
Thinking about air conditioning?
What this job involved, applied to your own house.
Air conditioning installation
One room or the whole house
Air conditioning installationWhat air conditioning costs
Real 2026 London prices and a calculator
What air conditioning costsWhat size do I need
The kW for each room in twenty seconds
What size do I needPlanning permission
Whether you are allowed one, in eight conditions
Planning permissionNew Southgate N11: questions about this job
What is a multi-split air conditioning system?
Several indoor units connected to one outdoor unit. Each room is controlled separately, and you have one condenser outside instead of one per room.
What does air conditioning in three rooms cost?
It depends on the rooms and the pipe routes. The air conditioning calculator prices it from our own 2026 quotations.
